DGC 7845 HC Pro - Compact steam combination oven with mains water and drain connection


DGC 7845 HC Pro
Compact steam combination oven with mains water and drain connection for steam cooking, baking, roasting with wireless food probe + HydroClean.

Price: $ 12,199.00
Article color:
  • Obsidian black
  • Stainless steel/Clean Steel
DGC7845 HC Pro

More product information

Compact steam combination oven with mains water and drain connection for steam cooking, baking, roasting with wireless food probe + HydroClean.


  • Large touch display with proximity sensor – M Touch + MotionReact
  • Perfect results – DualSteam technology

    DualSteam

    Maximum enjoyment: the steam spreads evenly and rapidly – for perfect cooking results.
  • Crispy outside, succulent inside – combination cooking

    Combination cooking

    Pure enjoyment: perfect results when baking and roasting with a combination of dry and moist heat.
  • Miele@home – network-enabled WiFi appliance + Mix & Match

    Mix & Match

    The Miele app suggests three types of food that can be cooked simultaneously.
  • Easy cleaning – HydroClean and stainless steel oven interior

    HydroClean

    Spotless: HydroClean cleans the oven compartment of your Miele steam combination oven fully automatically.

Downloads - DGC 7845 HC Pro

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data IFCzip Download
3D data RVTzip Download
3D data RFAzip Download
3D data DWGzip Download
3D data FBXzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

Installation DG, DGM, DGC XL, ESW7x20 installation drawings

Descriptions

DGC7x4x built-in tall cabinet, installation drawing

Descriptions

Installation_DG_DGM_DGC_XL_ESW7x10_EVS7010, installation drawings

Descriptions

H7000 handle, installation drawing

1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 24 mm, 5) 32.5 mm

Descriptions

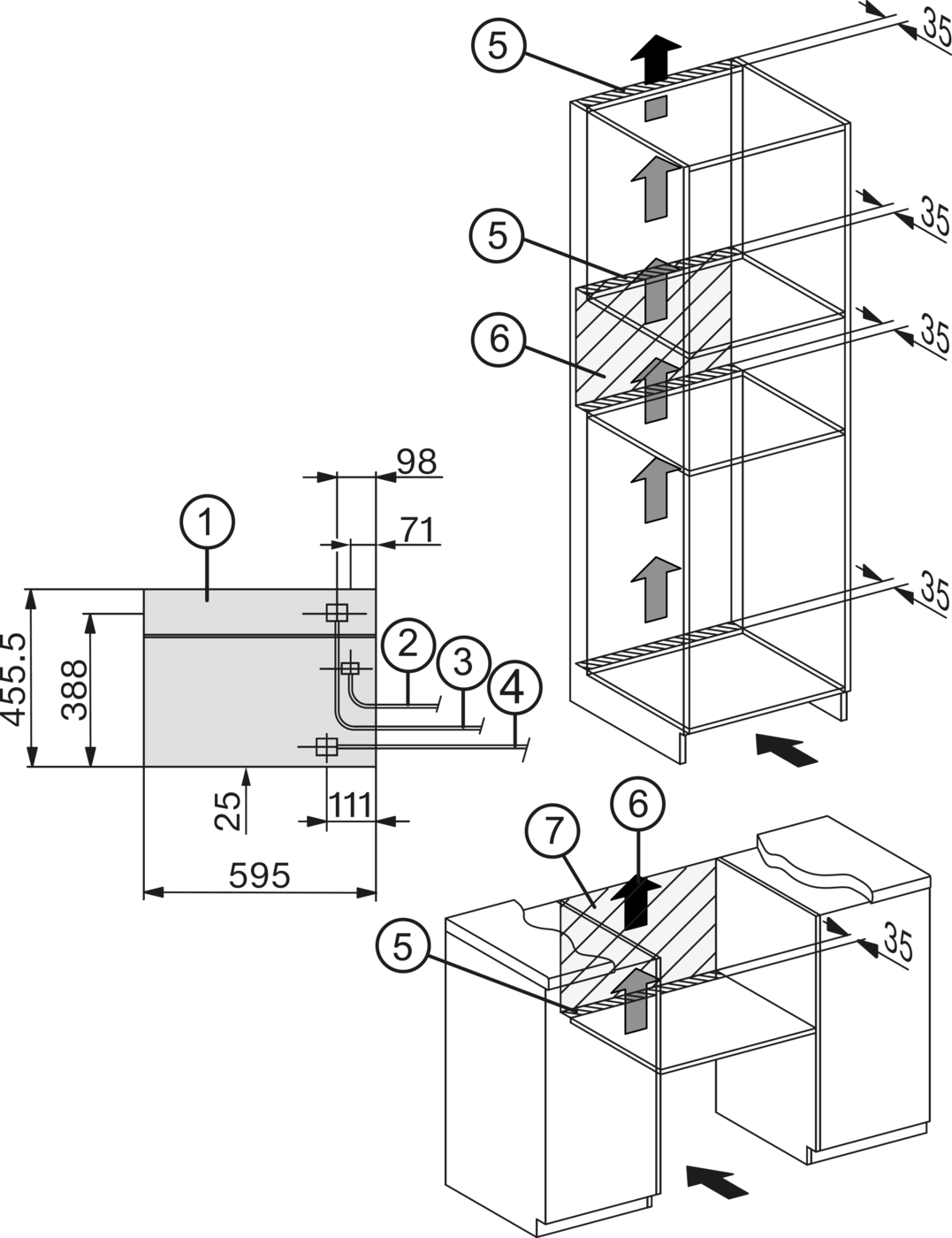

installation FW DGC XL, installation drawing, GB, AU

1) Front view, 2) Mains connection cable, L=2,000 mm, 3) Water inlet hose (stainless steel), L=2,000 mm, 4) Water drain hose (plastic), L=3,000 mm, The ascending end of the water drain hose up to the connection to the siphon must not be higher than 500 mm., 5) Ventilation cut-out min. 180 cm²., 6) aeration and deaeration, 7) no connection in this area

Descriptions

built-in DG DGM DGC XL build-under, installation drawing

Descriptions

side view DGC XL, installation drawing, GB, AU

22 mm glass, 23,3 mm stainless steel

Descriptions

DGC7x4x swivel range of the aperture, installation drawings

Descriptions

screw joint DGC XL, installation drawing

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
