KFNS 7734 D - Built-in fridge-freezer combination


KFNS 7734 D
Built-in fridge-freezer combination DynaCool, convenient LED lighting and NoFrost for optimum storage.

Price: $ 3,799.00
KFNS7734 D

More product information

Built-in fridge-freezer combination DynaCool, convenient LED lighting and NoFrost for optimum storage.


  • Spacious drawer with moisture control – DailyFresh

    DailyFresh

    Fruit and vegetables stay fresh for up to twice as long: spacious drawers with ideal humidity levels.
  • Optimum and maintenance-free LED lighting in compartment

    LED lighting

    Maintenance-free and economical: efficient and durable LEDs ensure perfect illumination of the interior.
  • No icing up of food and no need to defrost thanks to NoFrost

    NoFrost

    No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.
  • Uniform temperature distribution inside the appliance – DynaCool

    DynaCool

    Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
  • No visible build-up of condensation thanks to dry back wall

    Dry back wall

    Damp, warm air inside the refrigeration appliance can accumulate on the back wall – the coldest part of the appliance – in the form of condensation or ice. The back wall stays dry so that neither condensate nor ice is visible. You are spared the time and effort of removing these deposits from the appliance.

Downloads - KFNS 7734 D

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructionspdf Download
Fitting instructionspdf Download

CAD data / BIM data

Description Format Download
3D data RFAzip Download
3D data DWGzip Download
3D data RVTzip Download
3D data IFCzip Download
3D data FBXzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

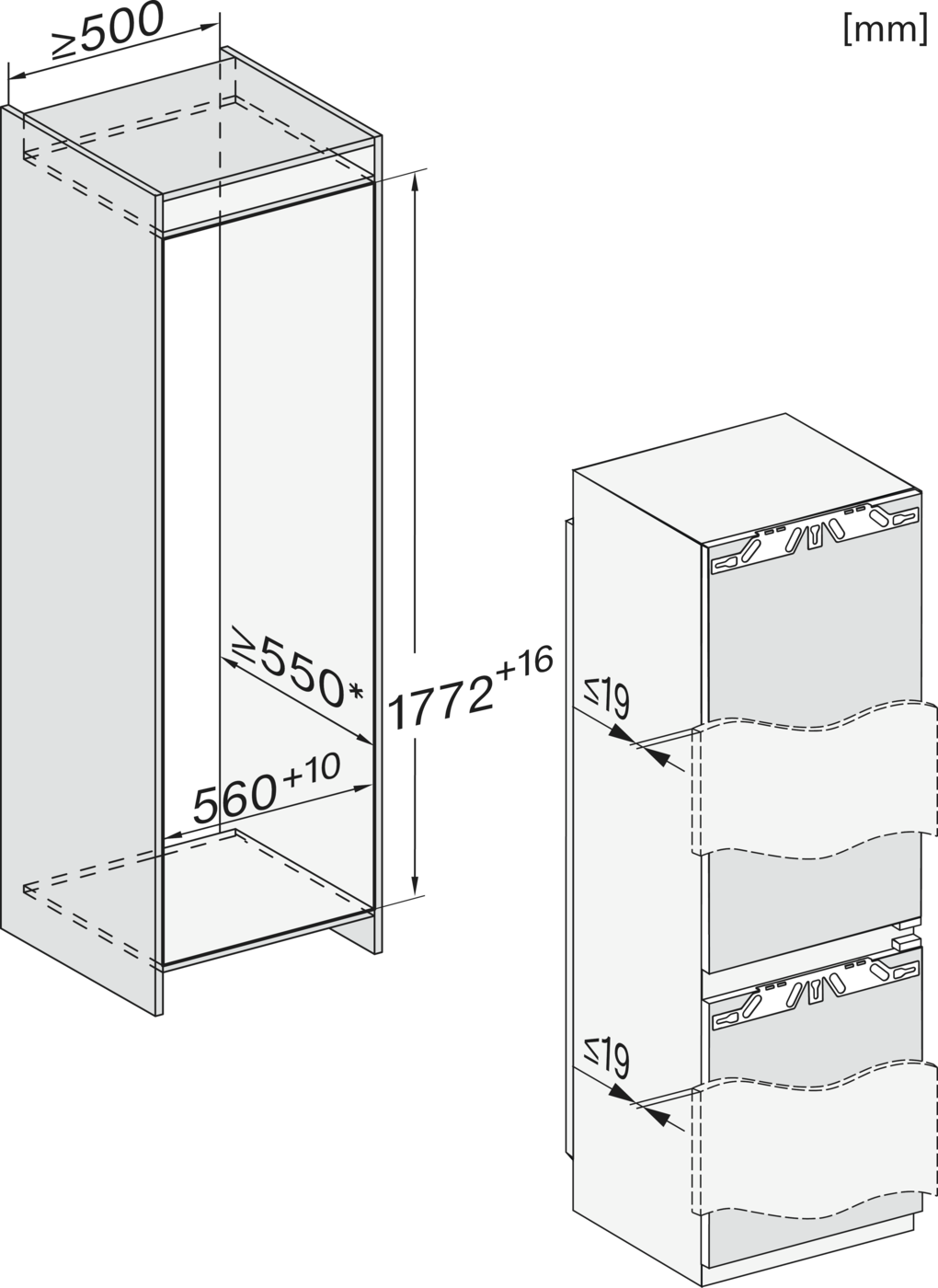

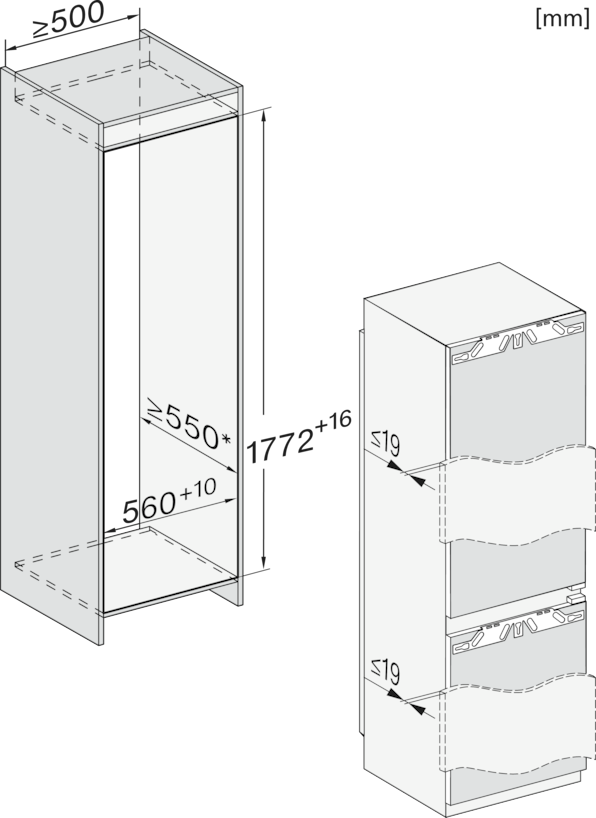

KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, built-in (footnote*) (installation drawings)

*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.

Descriptions

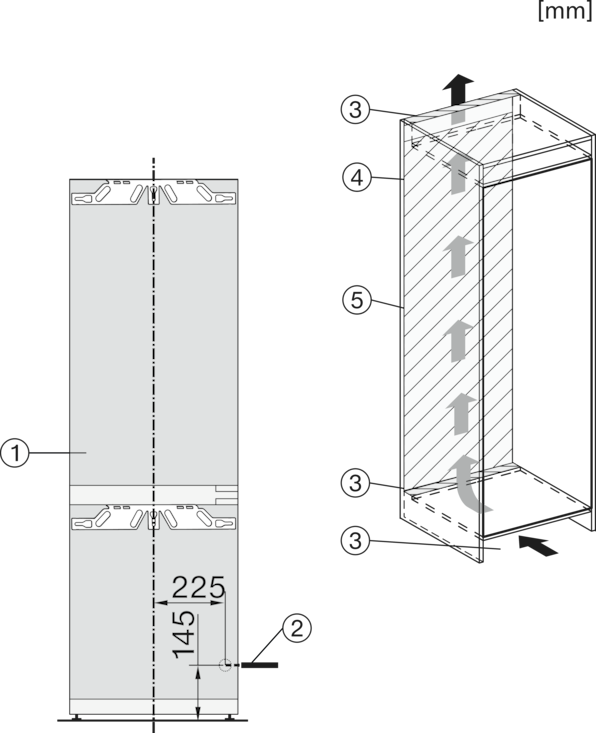

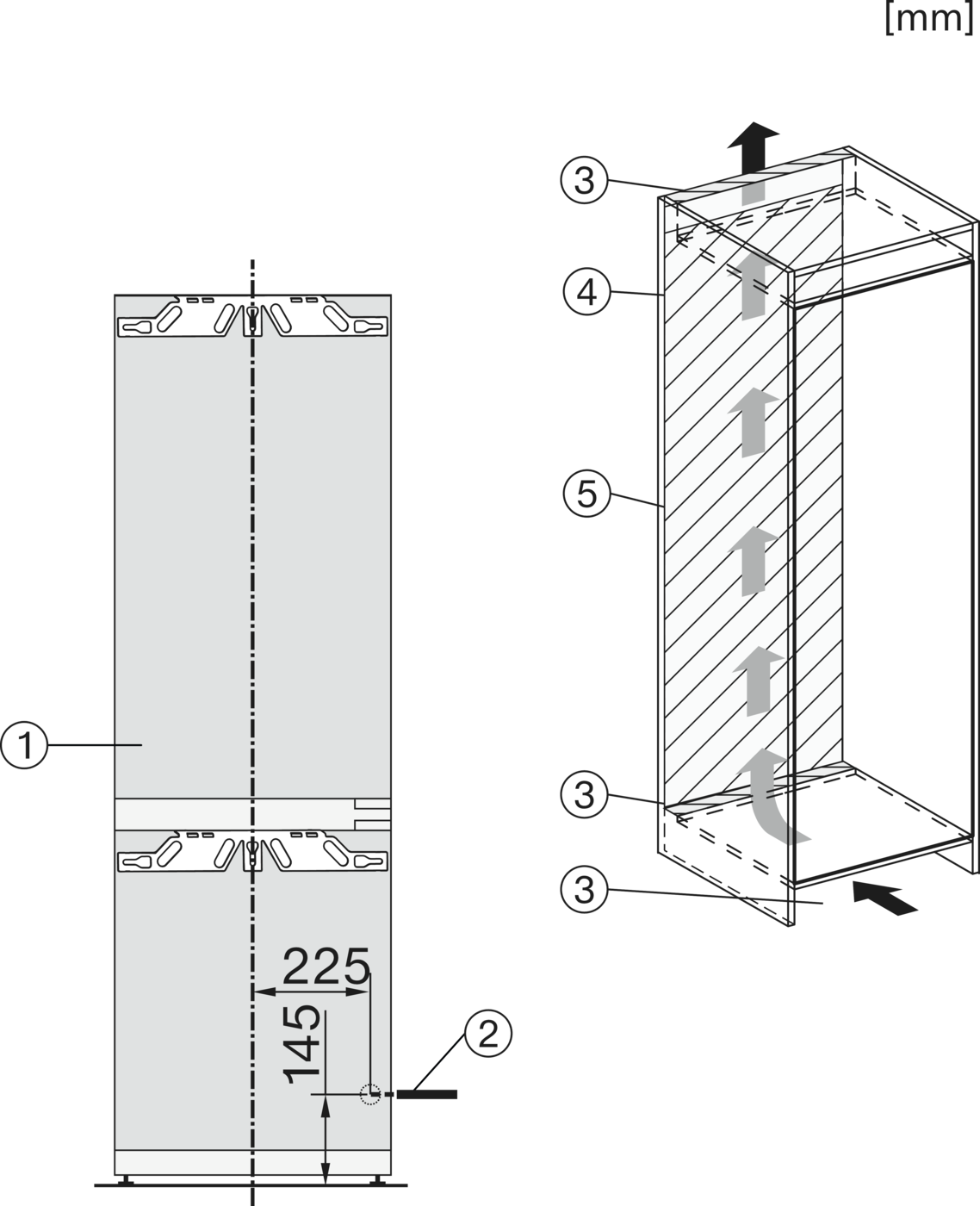

KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, installation (footnote*) (installation drawings)

*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area

Descriptions

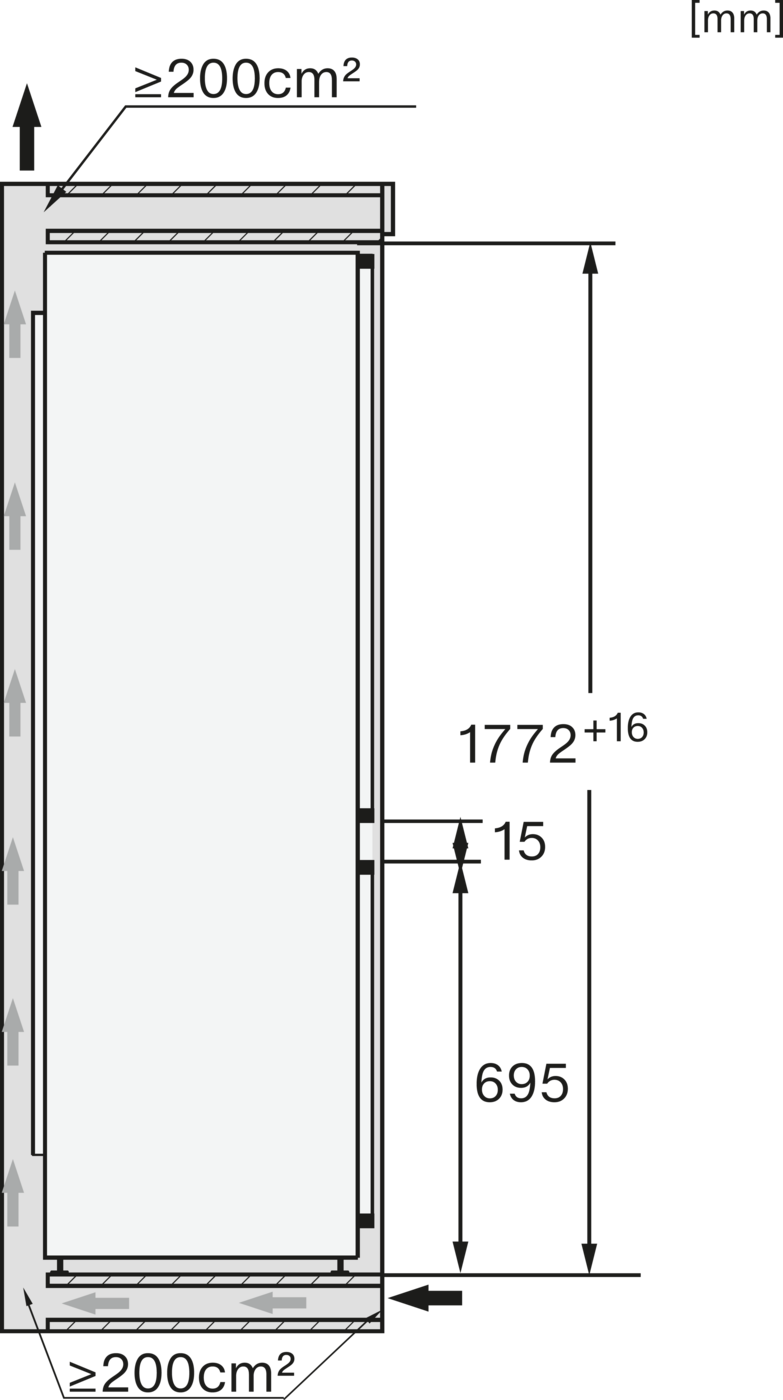

KFNS7734D, KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, side view (installation drawings)

Eco information

Description Format Download
Energylabel PNGpng Download
Online Label Flag JPGjpg Download
Energylabel PDFpdf Download
Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
