built-in H7000 XL, installation drawing
More product information
Ovens modern design with timer and Pyrolytic cleaning at a great entry-level price.
- 7-segment display with retractable knobs – EasyControl
EasyControl
Traditional simplicity: select cooking modes and settings using retractable dials. Status information, such as time settings, appears in a seven-segment display. - Minimal cleaning effort – Pyrolytic cleaning
Pyrolytic cleaning
Less cleaning effort: Automatic self-cleaning of the cooking compartment at high temperatures. - Lots of room and flexibility – 76 l oven capacity on 5 levels
Oven interior volume & shelf levels
Wonderful use of space: the carefully thought out oven interior configuration ensures effective use. - Easy handling – FlexiClip telescopic runners
FlexiClip telescopic runners
Ergonomic and convenient: with fully telescopic runners, you can reach the food inside the oven easily and safely. - Protects against burns – touch-cool fronts
Touch-cool front
Protection against burns: the appliance remains relatively cool – even on the outside of the door.
Downloads - H 2457 BP ACTIVE
User manual & Assembly
CAD data / BIM data
Installation drawings
side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
installation H7000 XL, installation drawing, GB, AU
1) Netzanschlussleitung, L=1500 mm, 2) In diesem Bereich kein Anschluss, 3) Lüftungsausschnitt min. 150 cm²
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.

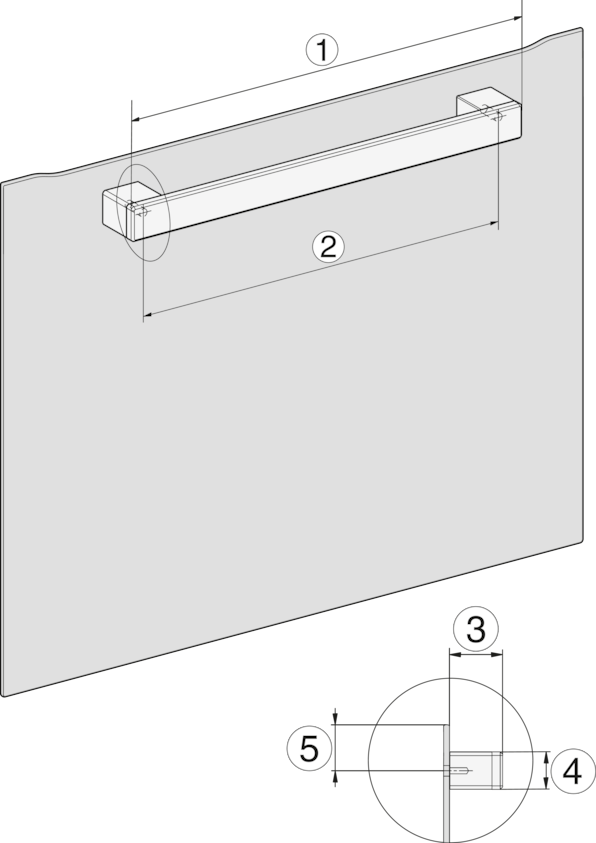

H2465B, H2465BP, H2466B, H2466BP, H2467B, H2467BP, H2468B, H2468BP, H2469B, H2469BP installation drawings
EU, 1) 399,6 mm, 2) 360 mm, 3) 45 mm, 4) 31,8 mm, 5) 32,5 mm, , EX, 1) 399.6 mm, 2) 360 mm, 3) 45 mm , 4) 31.8 mm, 5) 32.5 mm
