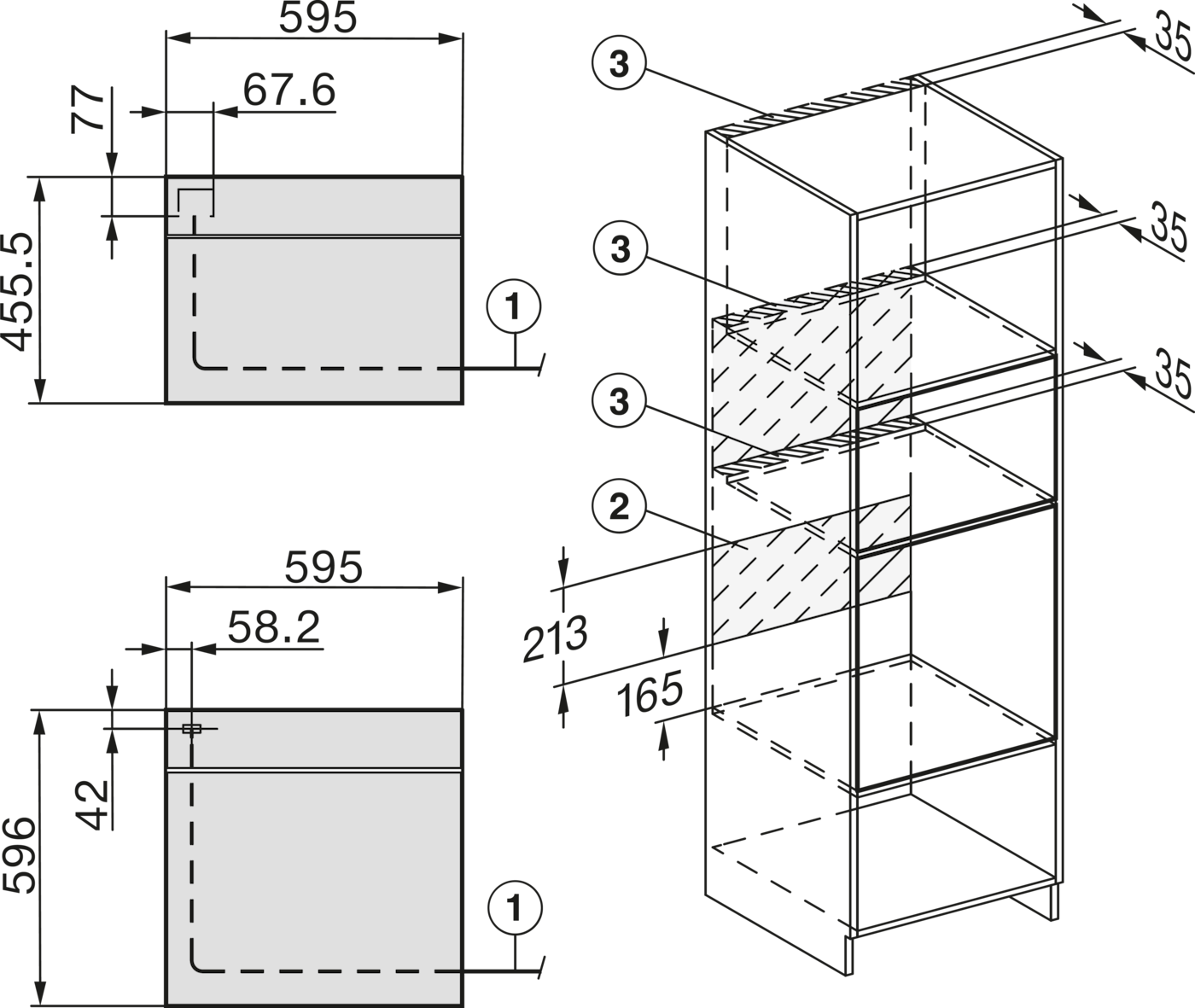

Installation H7000 BM XL, installation drawings
Price: $ 4,999.00
Article color:
H7260 BP
More product information
Ovens seamless design with clear text display and pyrolytic cleaning.
- Clear text display with sensor controls – DirectSensor S
DirectSensor S
Direct selection with 1-line clear text display: sensor controls can be used to directly select the desired mode. Other options and settings are available via the 1-line clear text display. - Minimal cleaning effort – Pyrolytic cleaning
Pyrolytic cleaning
Less cleaning effort: Automatic self-cleaning of the cooking compartment at high temperatures. - Cook with confidence and ease – Automatic programmes for guided cooking results that deliver perfect resullts
Automatic programmes
Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking. - Lots of room and flexibility – 76 l oven capacity on 5 levels
Oven interior volume & shelf levels
Wonderful use of space: the carefully thought out oven interior configuration ensures effective use. - Easy handling – FlexiClip telescopic runners
FlexiClip telescopic runners
Ergonomic and convenient: with fully telescopic runners, you can reach the food inside the oven easily and safely.
Downloads - H 7260 BP
User manual & Assembly
CAD data / BIM data
Installation drawings
Descriptions
Descriptions

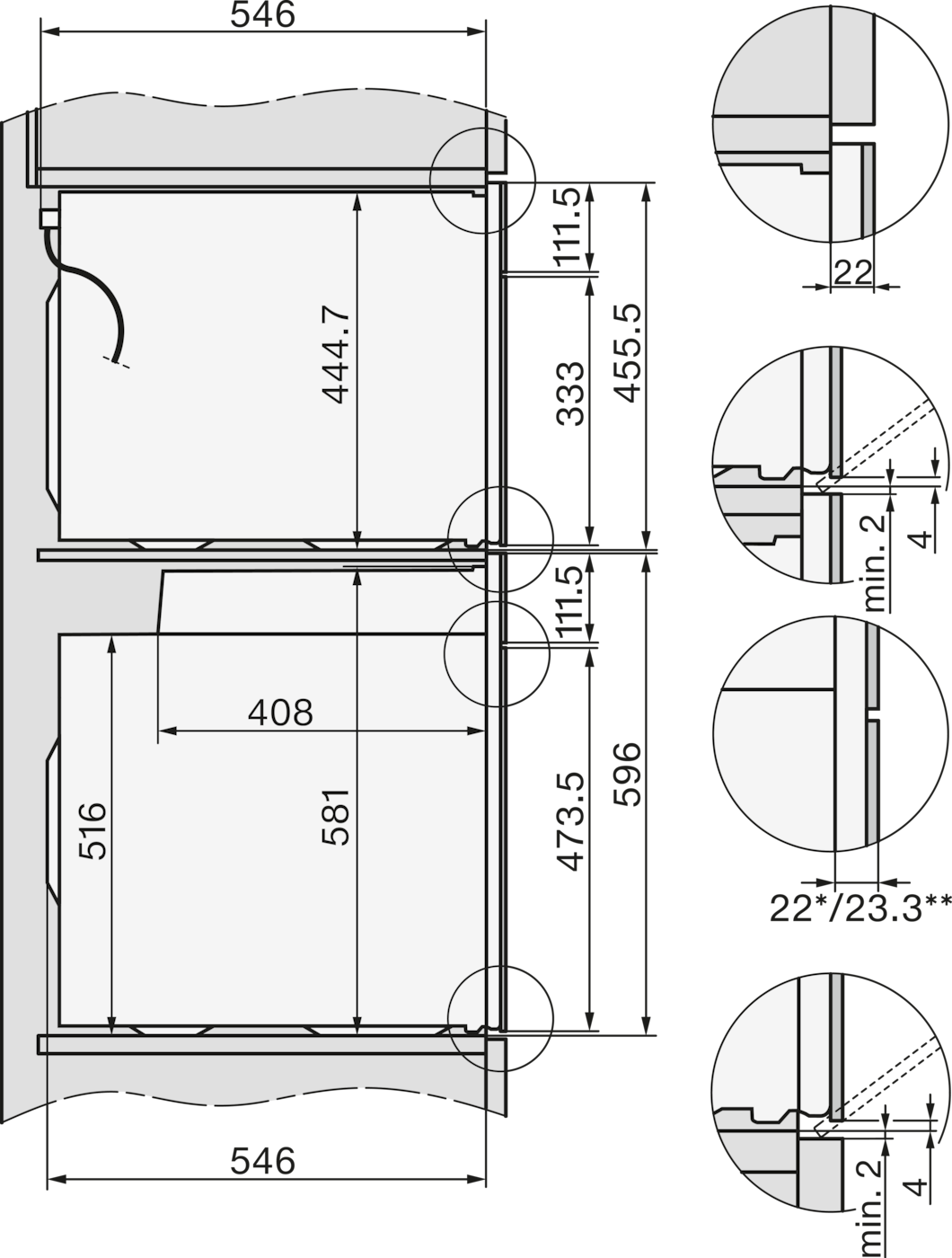

side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
Descriptions

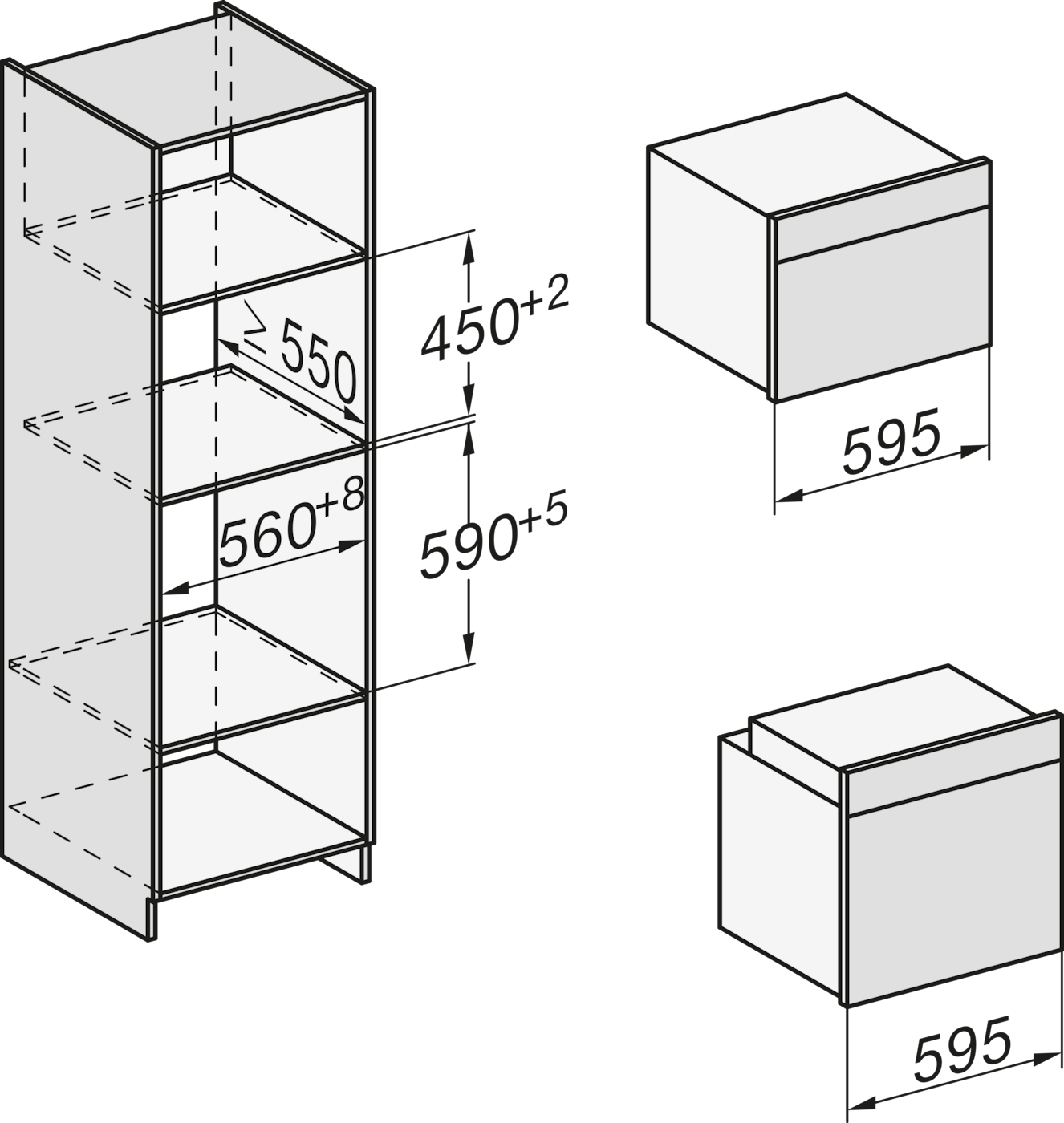

built-in H7000 XL, installation drawing
Descriptions
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Descriptions
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Descriptions
H7000 handle, installation drawing
1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 24 mm, 5) 32.5 mm
Descriptions
Installation Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Descriptions
Side view Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Subject to technical changes; no liability accepted for the accuracy of the information given!
