KM 7361 FL - Induction cooktop


KM 7361 FL
Induction cooktop with 4 individual cooking zones at an attractive entry-level price

Price:
KM7361 FL

More product information

Induction cooktop with 4 individual cooking zones at an attractive entry-level price


  • Quick selection via numerical keybank – ComfortSelect
  • 4 individual cooking zones in various sizes
  • A width of 620 mm for surface-mounted or flush-fit installation
  • Communication with the rangehood – automatic Con@ctivity function

    Con@ctivity

    Innovative convenience: the rangehood reacts automatically to settings on the cooktop.

Downloads - KM 7361 FL

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data IFCzip Download
3D data RFAzip Download
3D data RVTzip Download
3D data DWGzip Download
3D data FBXzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

KM7360FL, KM7361FL surface-mounted (*Fußnote) (Installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose

Descriptions

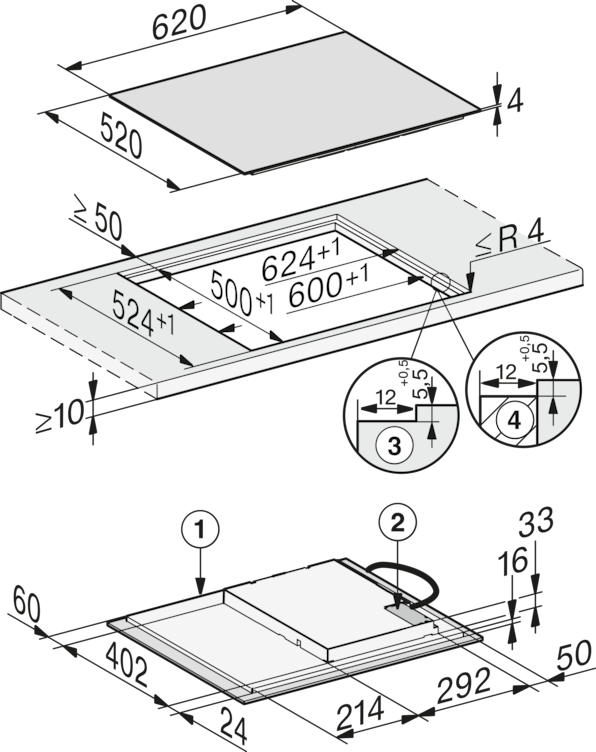

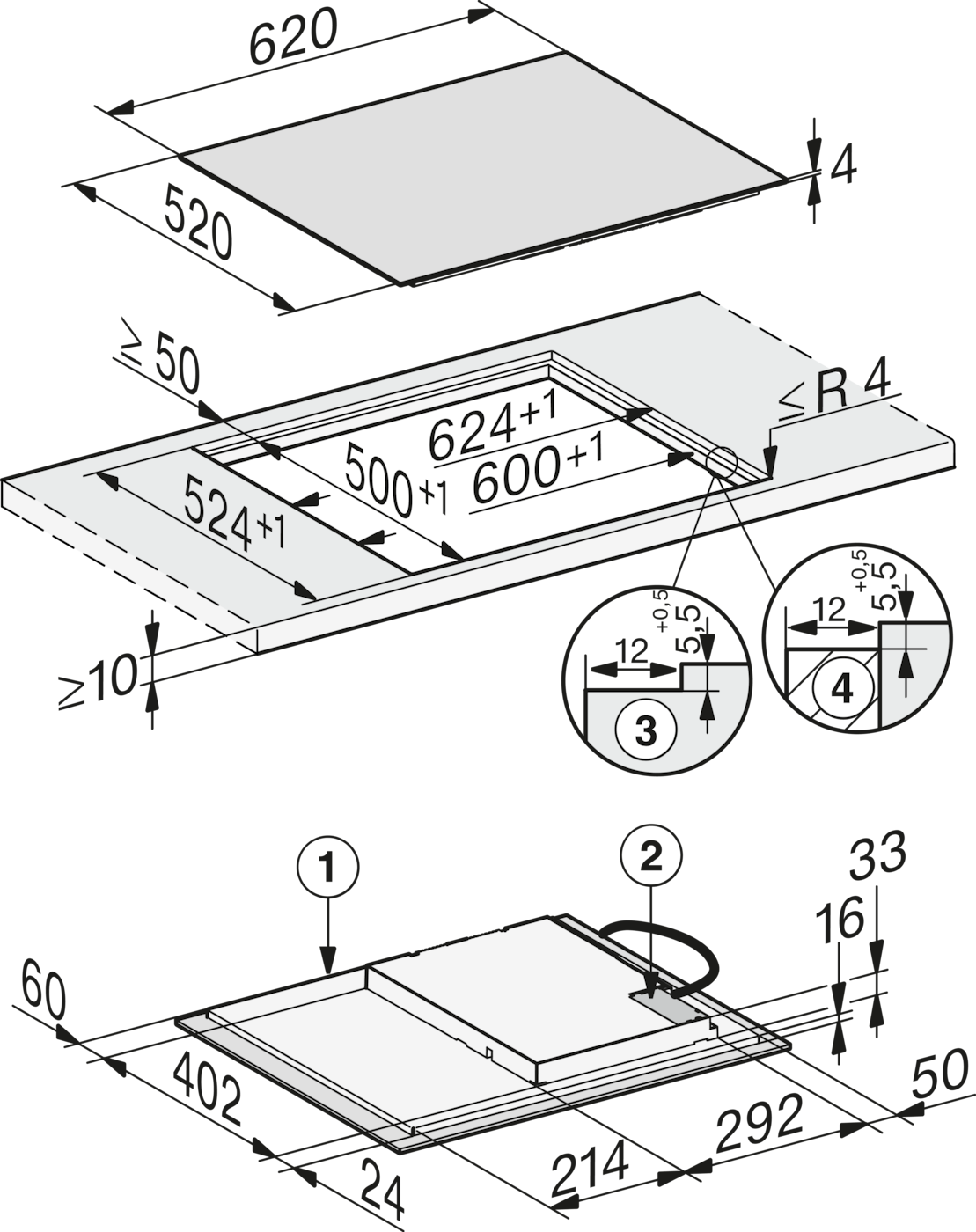

KM7360FL, KM7361FL flush (*Fußnote) (Installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loosely, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
