KM 7897-2 FL Diamond - Induction cooktop


KM 7897-2 FL Diamond
Induction cooktop with Diamond coating finish; a robust coating ensures your cooktop stays looking new for longer.

Price: $ 8,799.00
KM7897-2 FL Diamond

More product information

Induction cooktop with Diamond coating finish; a robust coating ensures your cooktop stays looking new for longer.


  • Diamond coating finish – DiamondFinish

    DiamondFinish

    Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.
  • Intelligent pan recognition – for up to 6 pans
  • Fast, intuitive selection using numerical displays – Smart Select White

    SmartSelect White

    Quick and intuitive: power levels can be selected directly for each cooking zone.
  • Communication with the rangehood – automatic Con@ctivity function

    Con@ctivity

    Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
  • Frameless for flush-fit or surface-mounted installation

Downloads - KM 7897-2 FL Diamond

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data FBXzip Download
3D data RVTzip Download
3D data DWGzip Download
3D data IFCzip Download
3D data RFAzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

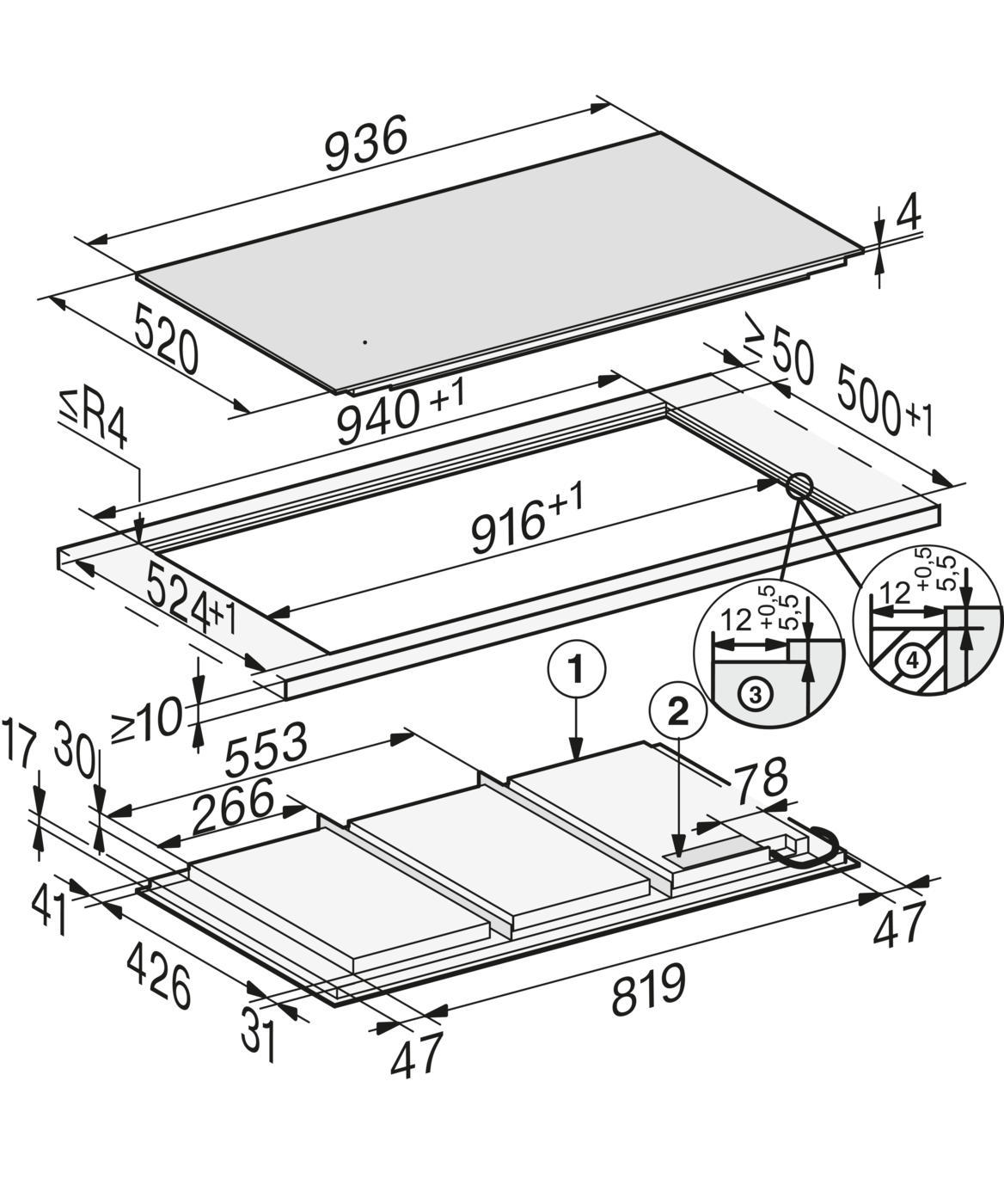

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - flush-fit

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)

Descriptions

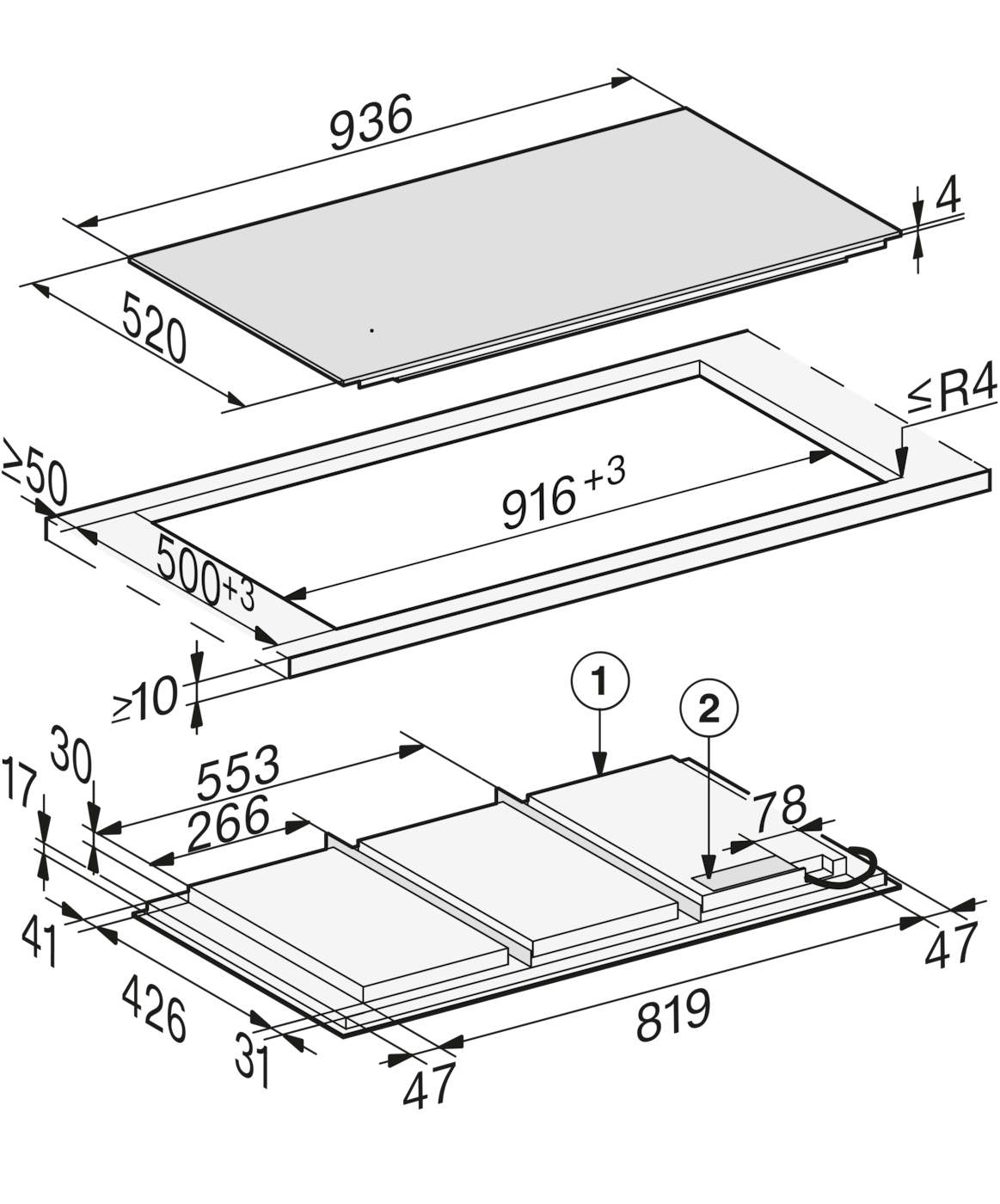

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - onset

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
