KM 7575-2 FL - Induction cooktop


KM 7575-2 FL
Induction cooktop with 3 PowerFlex cooking areas for maximum power output

Price: $ 5,999.00
KM7575-2 FL

More product information

Induction cooktop with 3 PowerFlex cooking areas for maximum power output


  • Intuitive and quick selection via number sequences – Smart Select

    SmartSelect

    Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
  • 6 cooking zones incl. 3 high-power PowerFlex cooking areas

    PowerFlex

    Unbeatably fast and versatile: the booster output of up to 7.3 kW.
  • A width of 800 mm for surface-mounted or flush-fit installation
  • Shortest heating-up times – TwinBooster
  • Communication with the rangehood – automatic Con@ctivity function

    Con@ctivity

    Innovative convenience: the rangehood reacts automatically to settings on the cooktop.

Downloads - KM 7575-2 FL

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data FBXzip Download
3D data RVTzip Download
3D data DWGzip Download
3D data RFAzip Download
3D data IFCzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

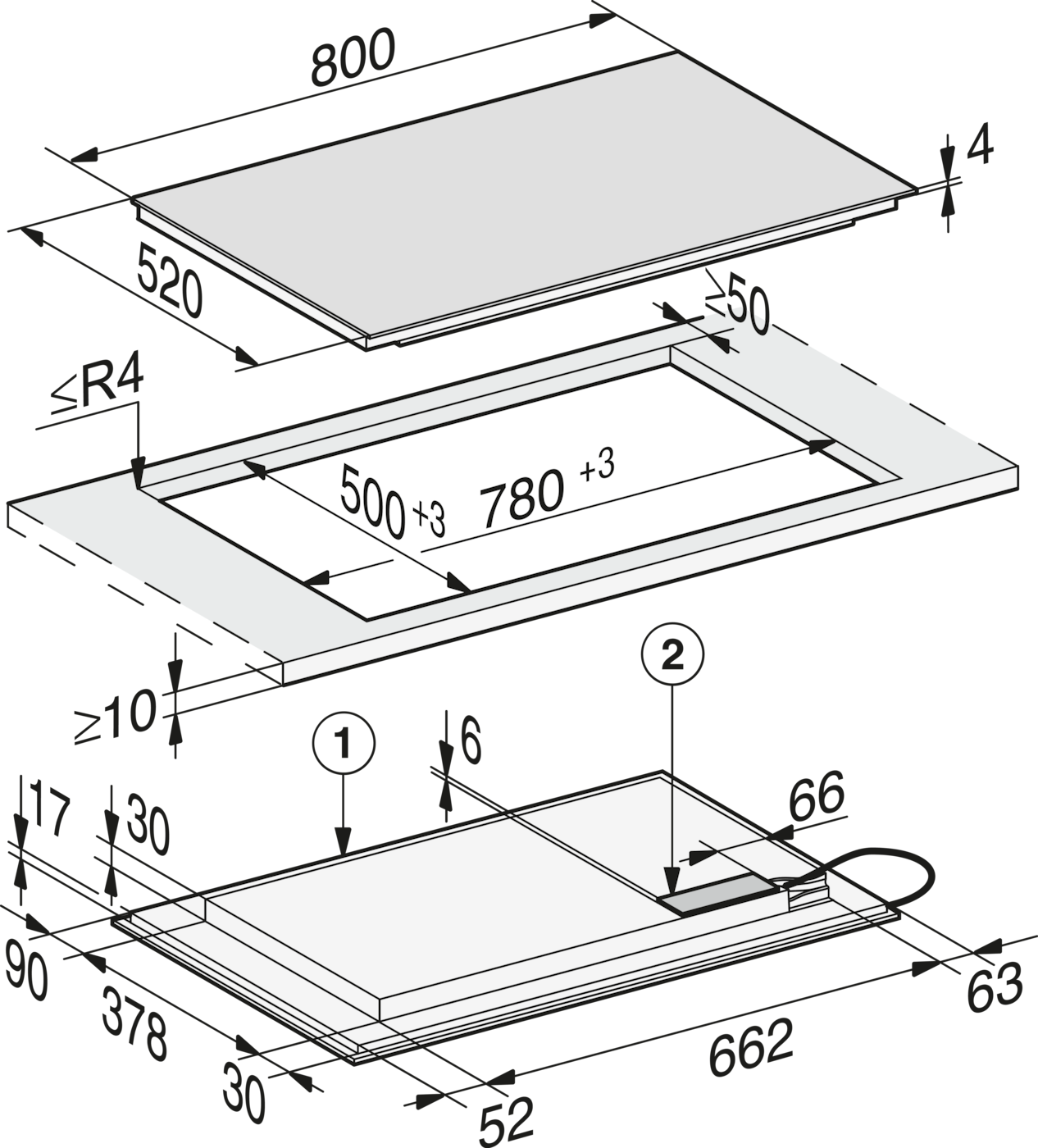

KM7575-2FL, KM7576-2FL surface mounted (installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose

Descriptions

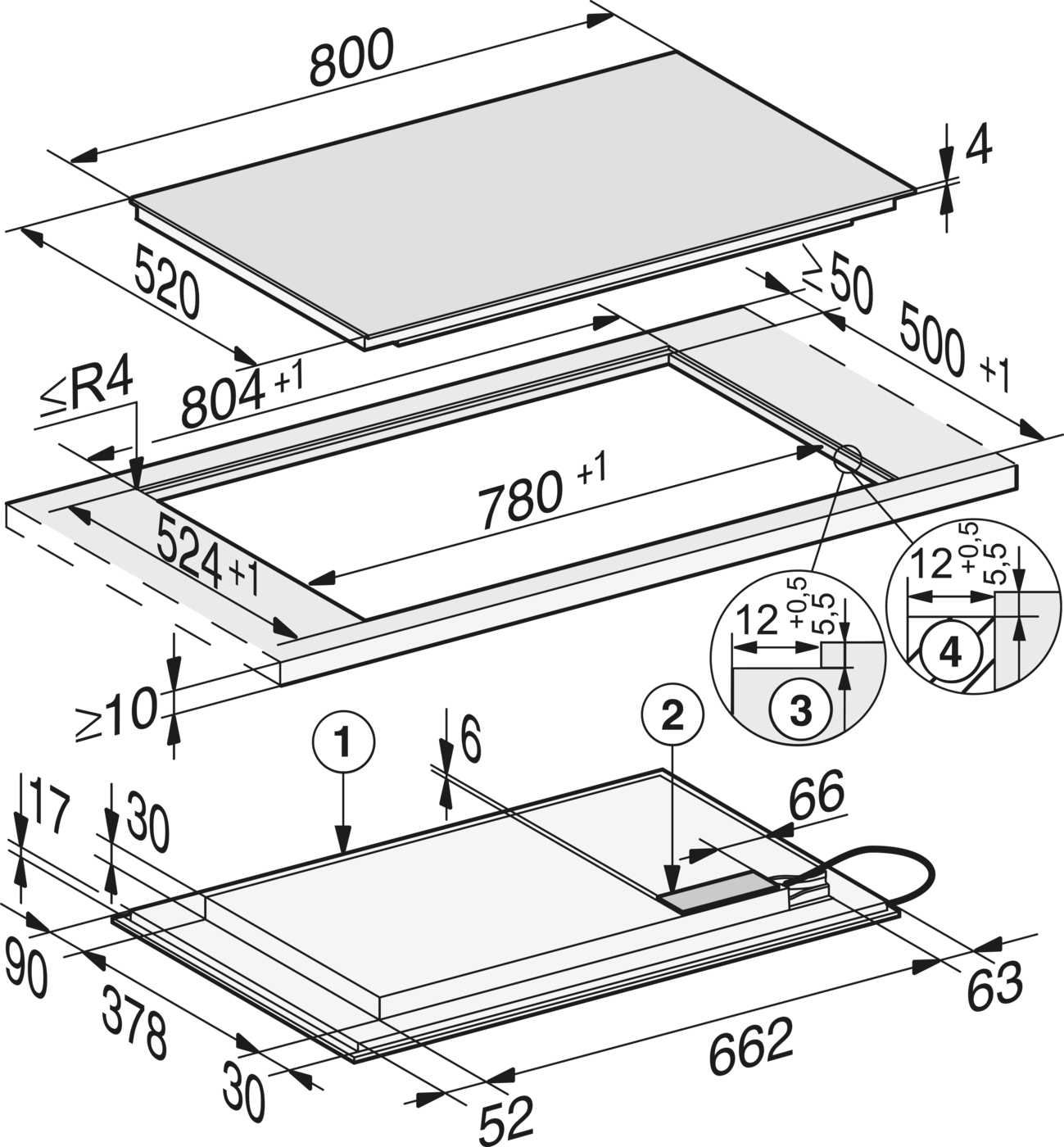

KM7575-2FL, KM7576-2FL flush (installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
