KM 7679 FL - Induction cooktop


KM 7679 FL
Induction cooktop with TempControl for perfect frying results

Price: $ 5,899.00
KM7679 FL

More product information

Induction cooktop with TempControl for perfect frying results


  • Intuitive and quick selection via number sequences – Smart Select

    SmartSelect

    Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
  •  4 cooking zones incl. 1 PowerFlex area and 1 TempControl zone

    TempControl

    Guaranteed results: the temperature of the pan is kept constant and nothing burns on.
  • A width of 800 mm for surface-mounted or flush-fit installation
  • Shortest heating-up times – TwinBooster
  • Communication with the rangehood – automatic Con@ctivity function

    Con@ctivity

    Innovative convenience: the rangehood reacts automatically to settings on the cooktop.

Downloads - KM 7679 FL

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data IFCzip Download
3D data RVTzip Download
3D data RFAzip Download
3D data DWGzip Download
3D data FBXzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

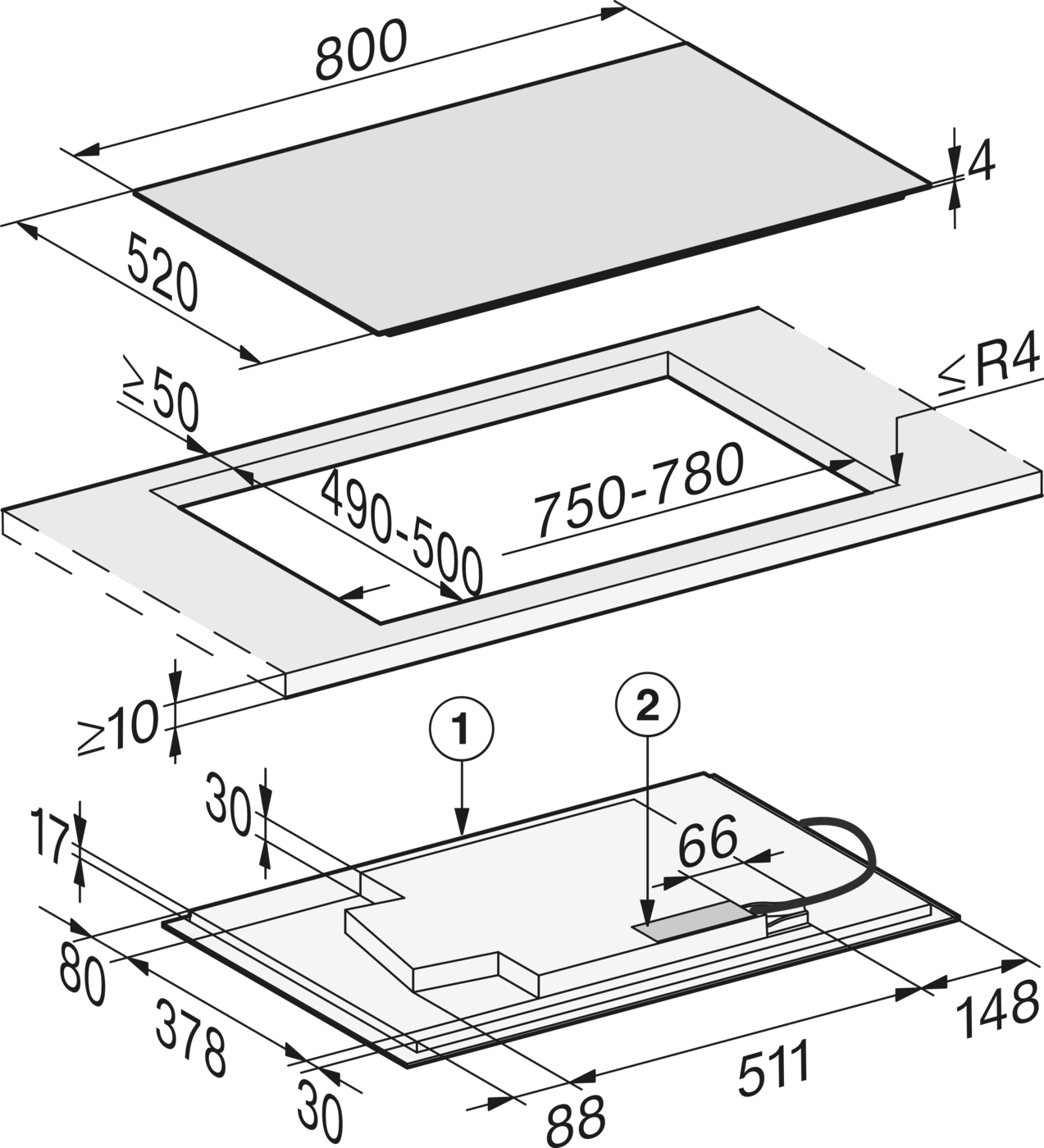

KM7679 FL, KM7679-1FL, KM7879FL, overlying (installation drawing)

1) Front , 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely

Descriptions

KM7679FL, KM7879FL, KM7679-1FL, flush (Installation drawing)

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied),

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
