CSDA 7001 FL - SmartLine element


CSDA 7001 FL
SmartLine element as downdraft extractor for extraction or recirculation operation

Price: $ 3,699.00
Article color:
  • Black
CSDA7001 FL

More product information

SmartLine element as downdraft extractor for extraction or recirculation operation


  • Intuitive and quick selection via number sequences – Smart Select

    SmartSelect

    Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element

    Combination with SmartLine

    Uniform and elegant: your Miele cooktop can be perfectly combined with our SmartLine elements.
  • Efficient filtration – 10-layer stainless-steel grease filter

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
  • Energy-efficient and quiet – powerful ECO motor

    ECO motor

    The ECO motor operates with DC current and saves up 70% energy compared to conventional motors. Thanks to this technology, it operates very quietly yet as powerfully as all fans used by Miele.

Downloads - CSDA 7001 FL

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data IFCzip Download
3D data DWGzip Download
3D data FBXzip Download
3D data RFAzip Download
3D data RVTzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

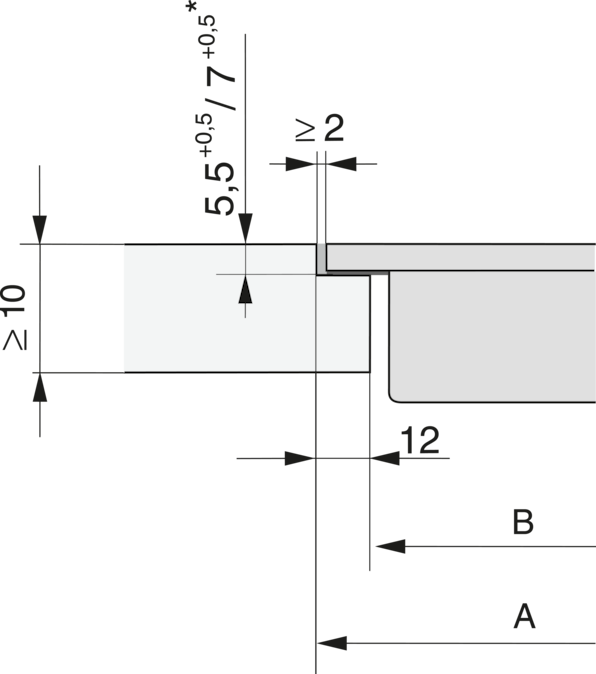

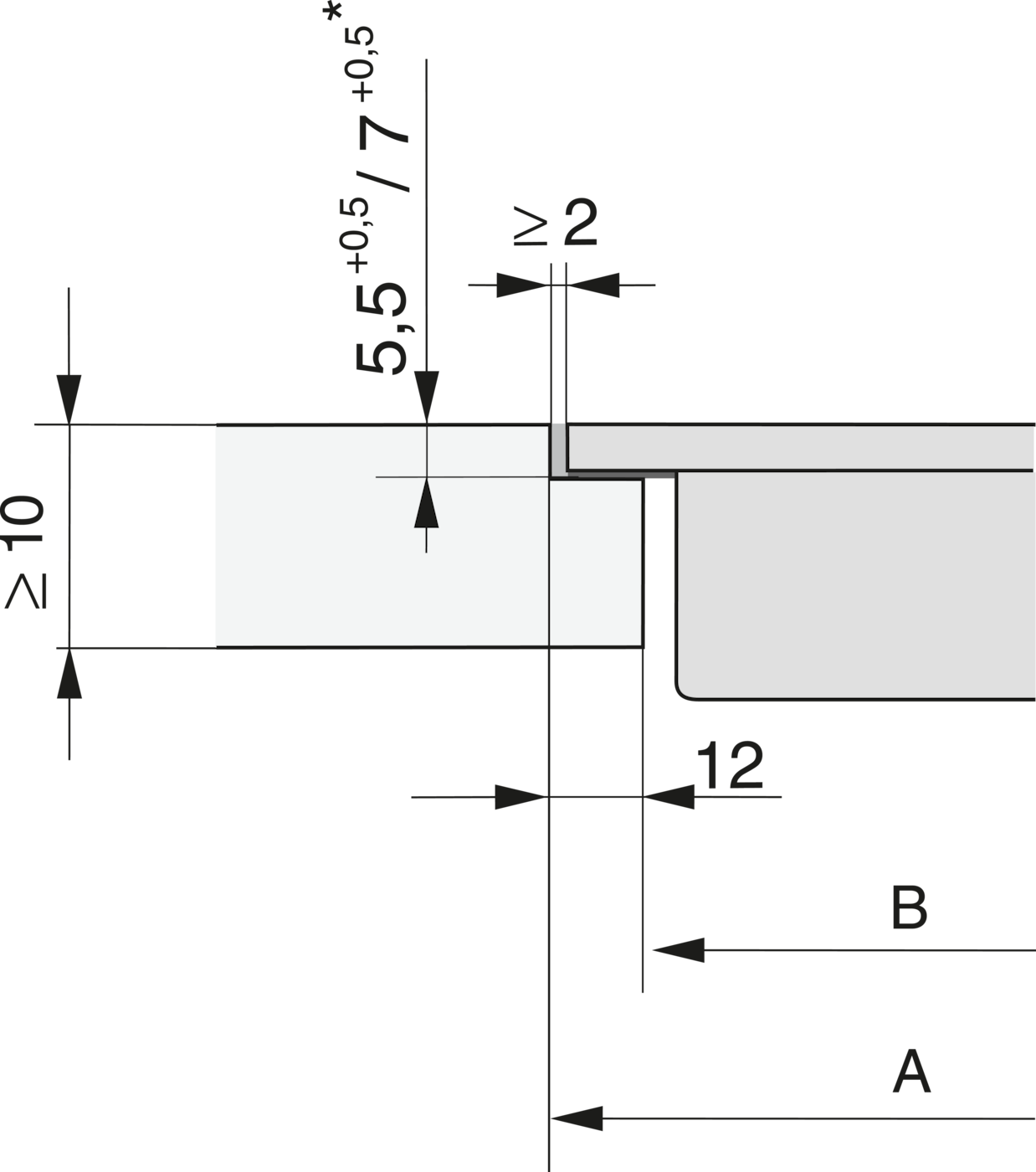

CS 7000 FL (Installation drawing)

Descriptions

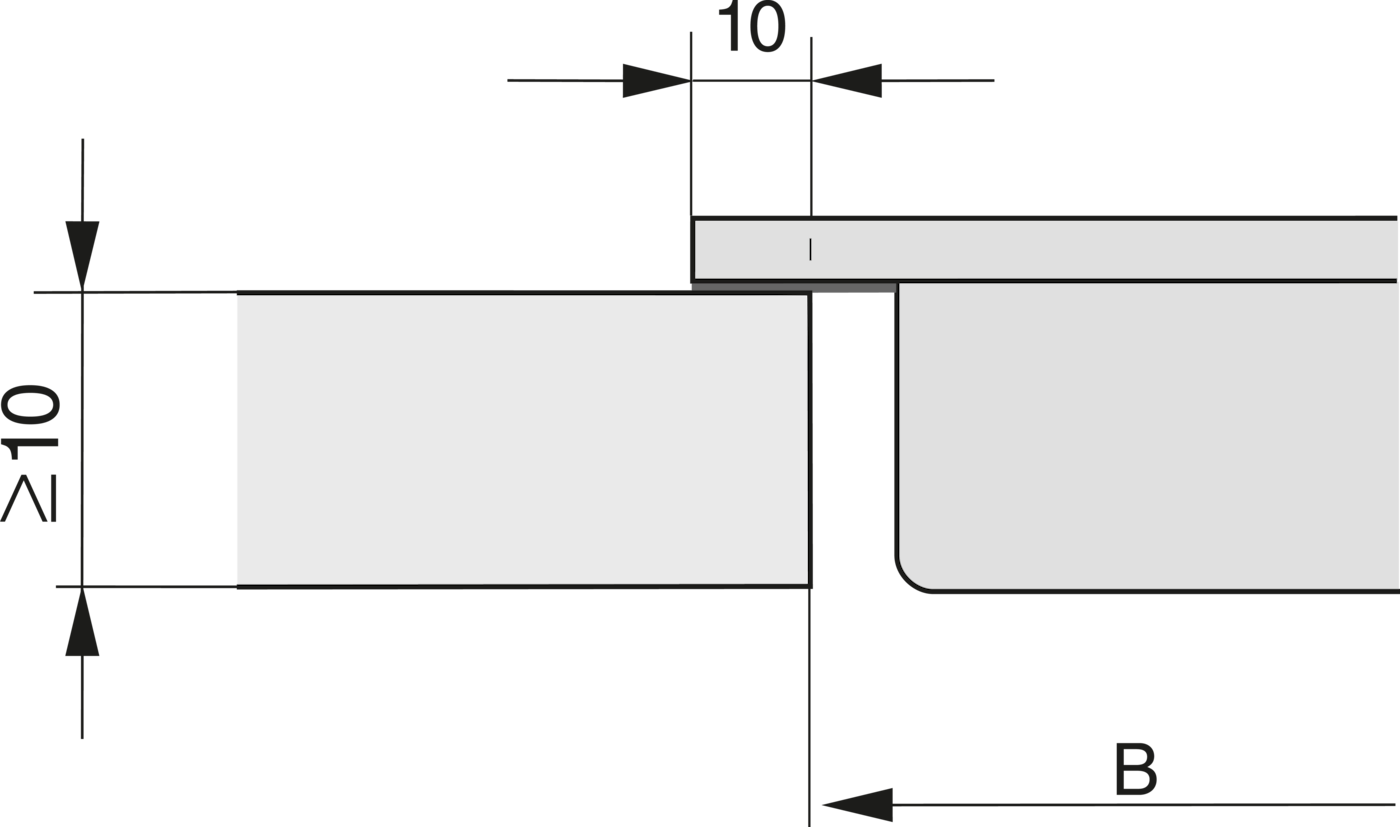

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

Descriptions

CSDA 7001 - supported installation (Skizze)

1) front, 2) Fan (in the plinth lying on the floor), 3) Air duct, 4) E-Box,

Descriptions

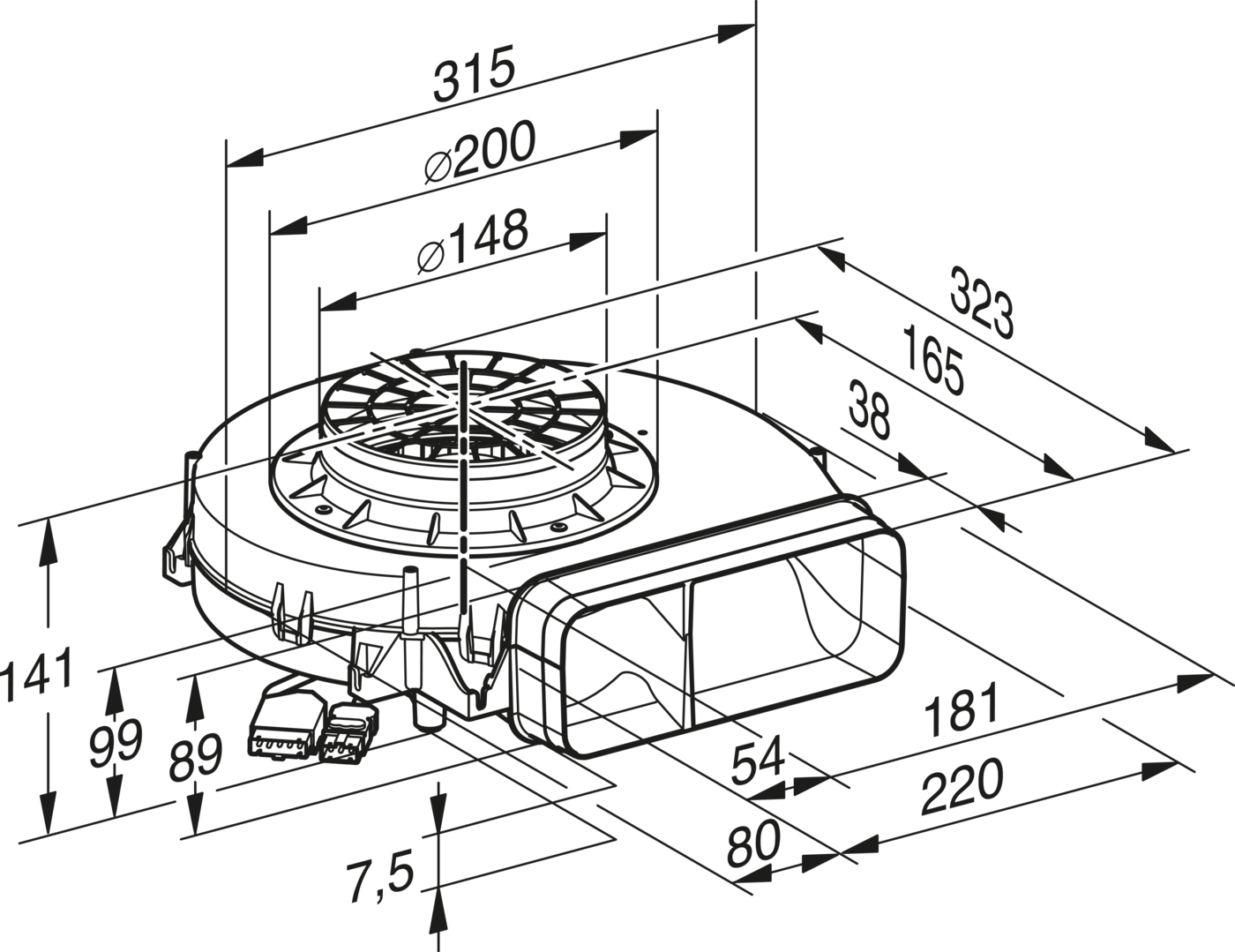

Plinth blower for CSDA 7001 (Installation drawing)

Descriptions

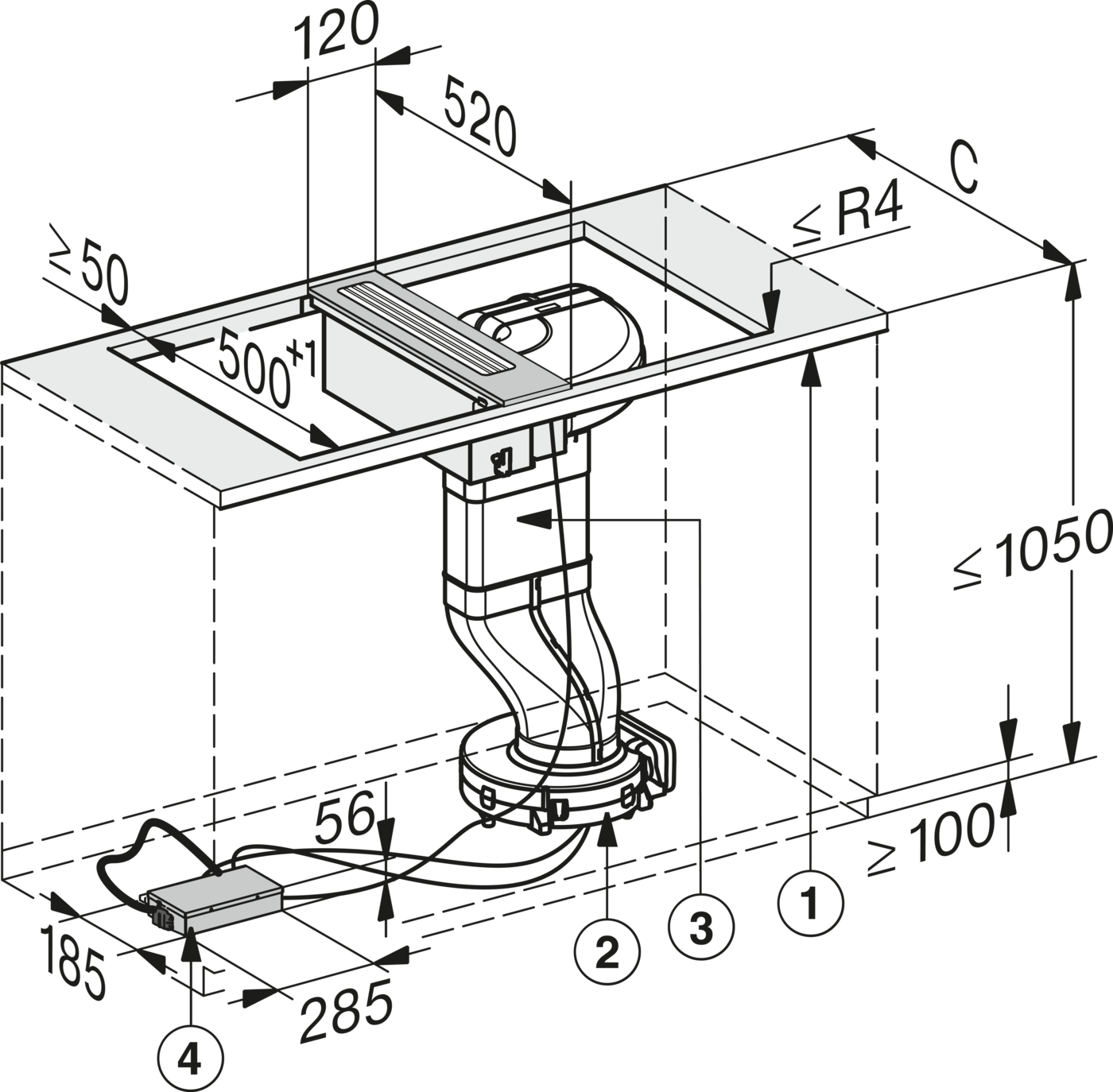

CSDA 7001 - flush (Installation drawing)

1) front, 2) Fan (in the plinth lying on the floor), 3) Stepped cut-out, 4) 12 mm wooden panel (not supplied as standard), 5) Air duct, 6) E-box

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
