KM 7464 FL - Induction cooktop


KM 7464 FL
Induction cooktop with PowerFlex cooking area for maximum power output

Price: $ 3,999.00
KM7464 FL

More product information

Induction cooktop with PowerFlex cooking area for maximum power output


  • Quick selection via numerical keybank – ComfortSelect
  • 4 cooking zones incl. 1 high-power PowerFlex cooking area

    PowerFlex

    Unbeatably fast and versatile: the booster output of up to 7.3 kW.
  • A width of 620 mm for surface-mounted or flush-fit installation
  • Shortest heating-up times – TwinBooster
  • Communication with the rangehood – automatic Con@ctivity function

    Con@ctivity

    Innovative convenience: the rangehood reacts automatically to settings on the cooktop.

Downloads - KM 7464 FL

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data FBXzip Download
3D data RFAzip Download
3D data RVTzip Download
3D data DWGzip Download
3D data IFCzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

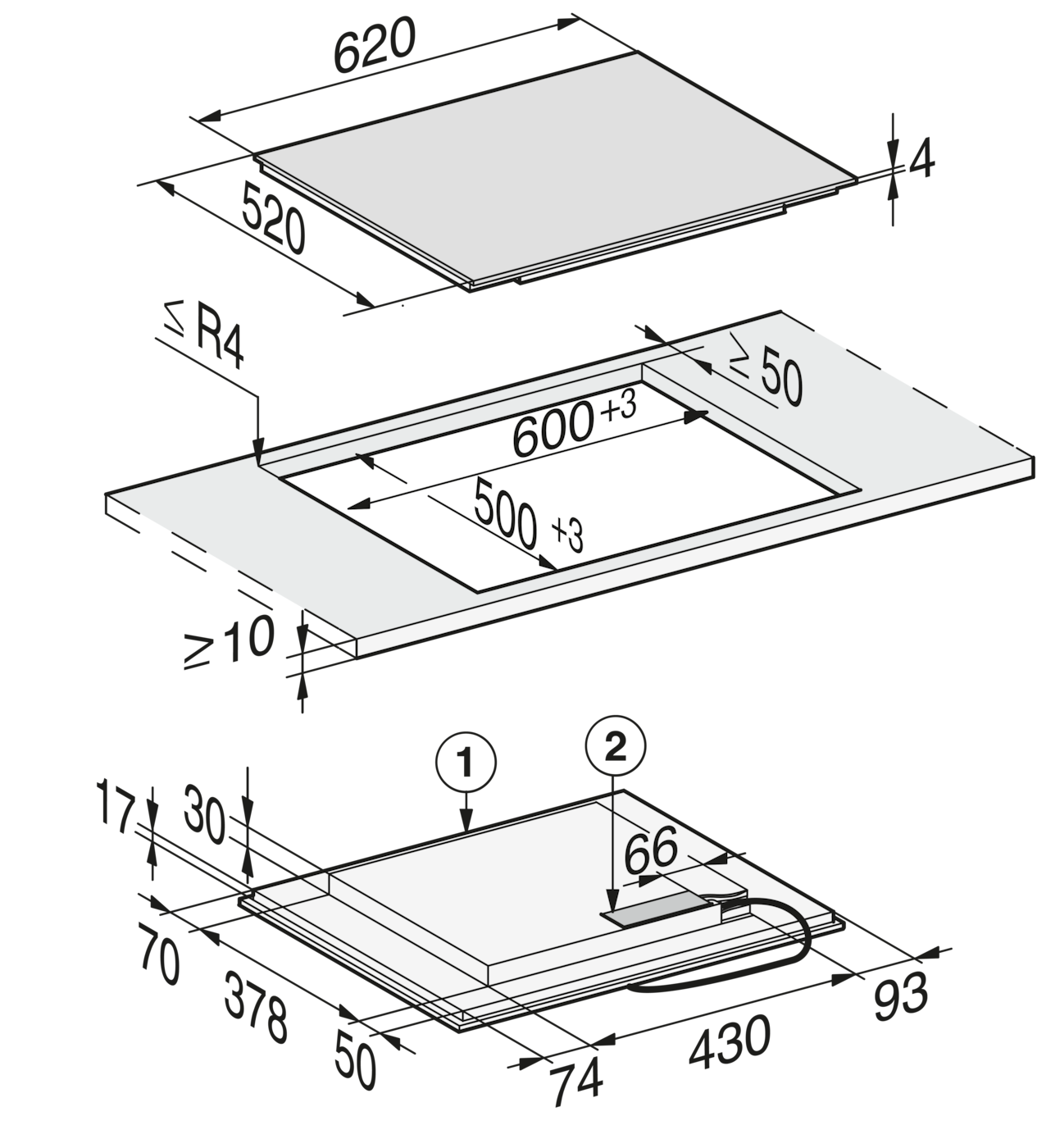

KM7464FL, KM7465FL (installation drawings)

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied),

Descriptions

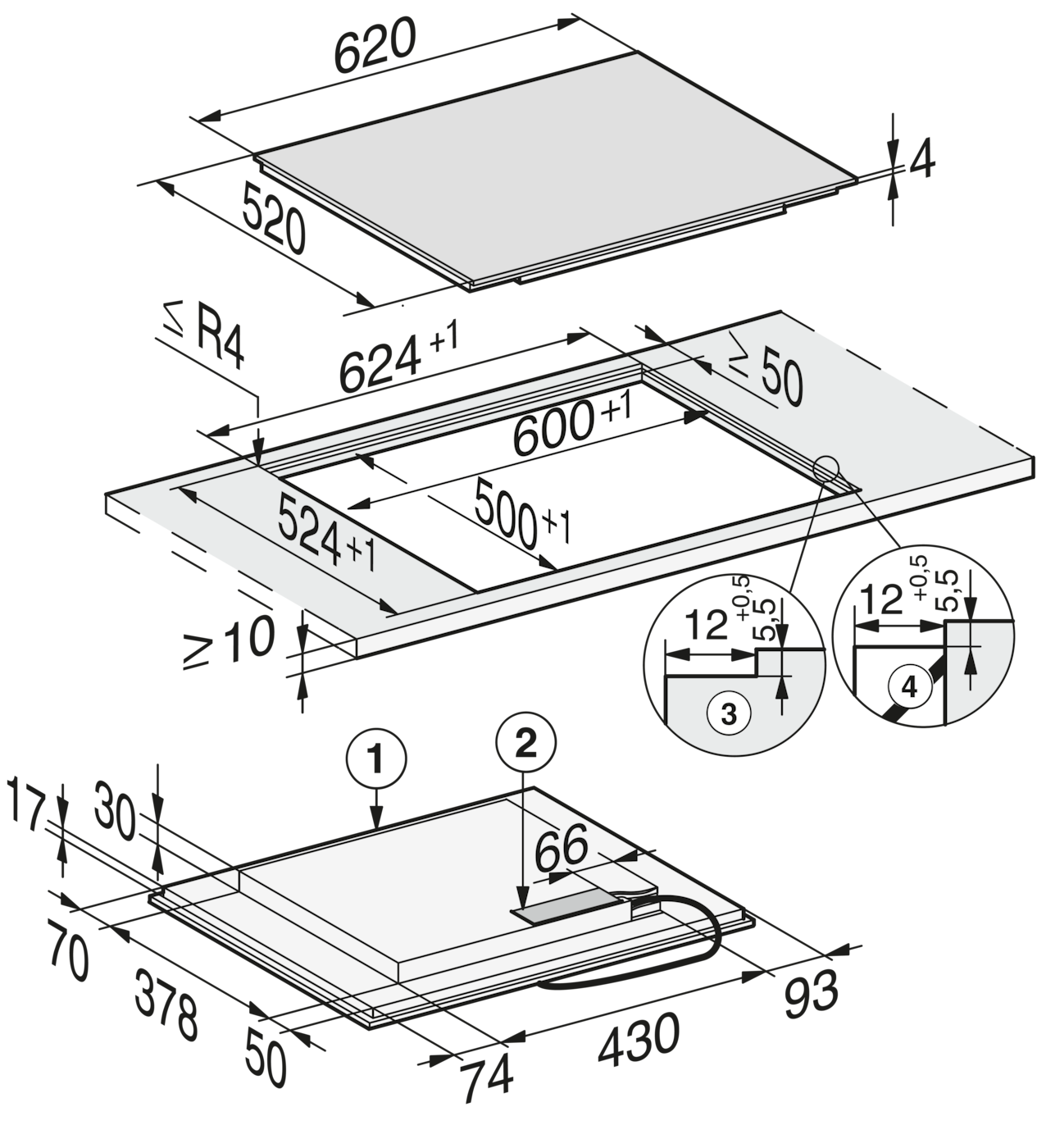

KM7464FL, KM7465FL (installation drawings) onset

1) at the front 2) Mains connection box with mains connection cable, L = 1440 mm,

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
