CS 7612 FL - SmartLine element


CS 7612 FL
SmartLine element with induction PowerFlex cooking zone

Price: $ 3,699.00
Article color:
  • Black
CS7612 FL

More product information

SmartLine element with induction PowerFlex cooking zone


  • Intuitive and quick selection via number sequences – Smart Select

    SmartSelect

    Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element

    Combination with SmartLine

    Uniform and elegant: your Miele cooktop can be perfectly combined with our SmartLine elements.
  • Versatile and fast – 2 cooking zones incl. 1 PowerFlex area

    PowerFlex induction

    Versatile and flexible: Large cookware can also be heated quickly and easily.
  • Shortest heating-up times – TwinBooster

Downloads - CS 7612 FL

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data IFCzip Download
3D data DWGzip Download
3D data RVTzip Download
3D data FBXzip Download
3D data RFAzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

CS 7000 FL (Installation drawing)

Descriptions

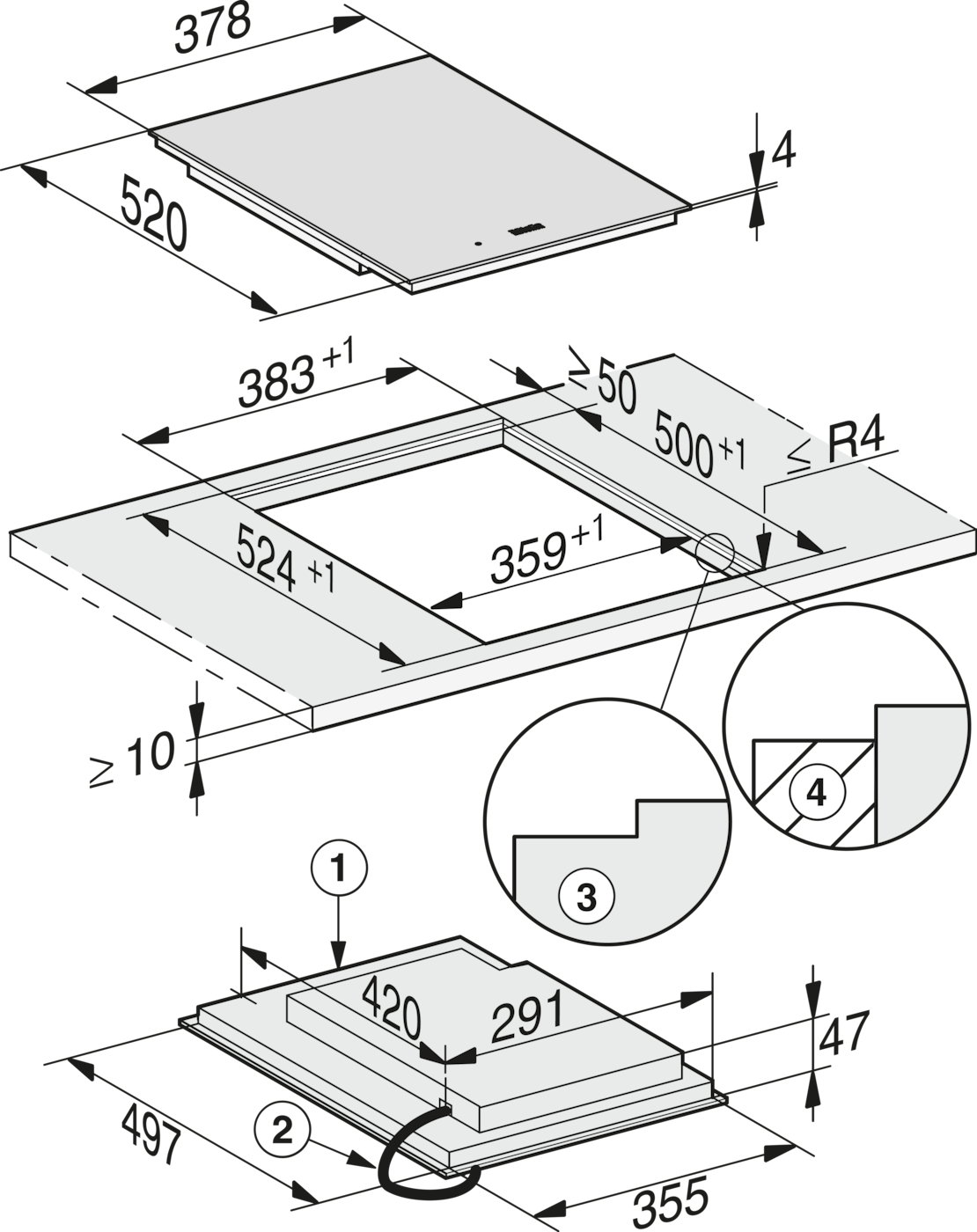

CS7612-1FL, CS7612FL, flush (installation drawing)

1) Front, 2) Mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden Frame 12 mm (supplied loose),

Descriptions

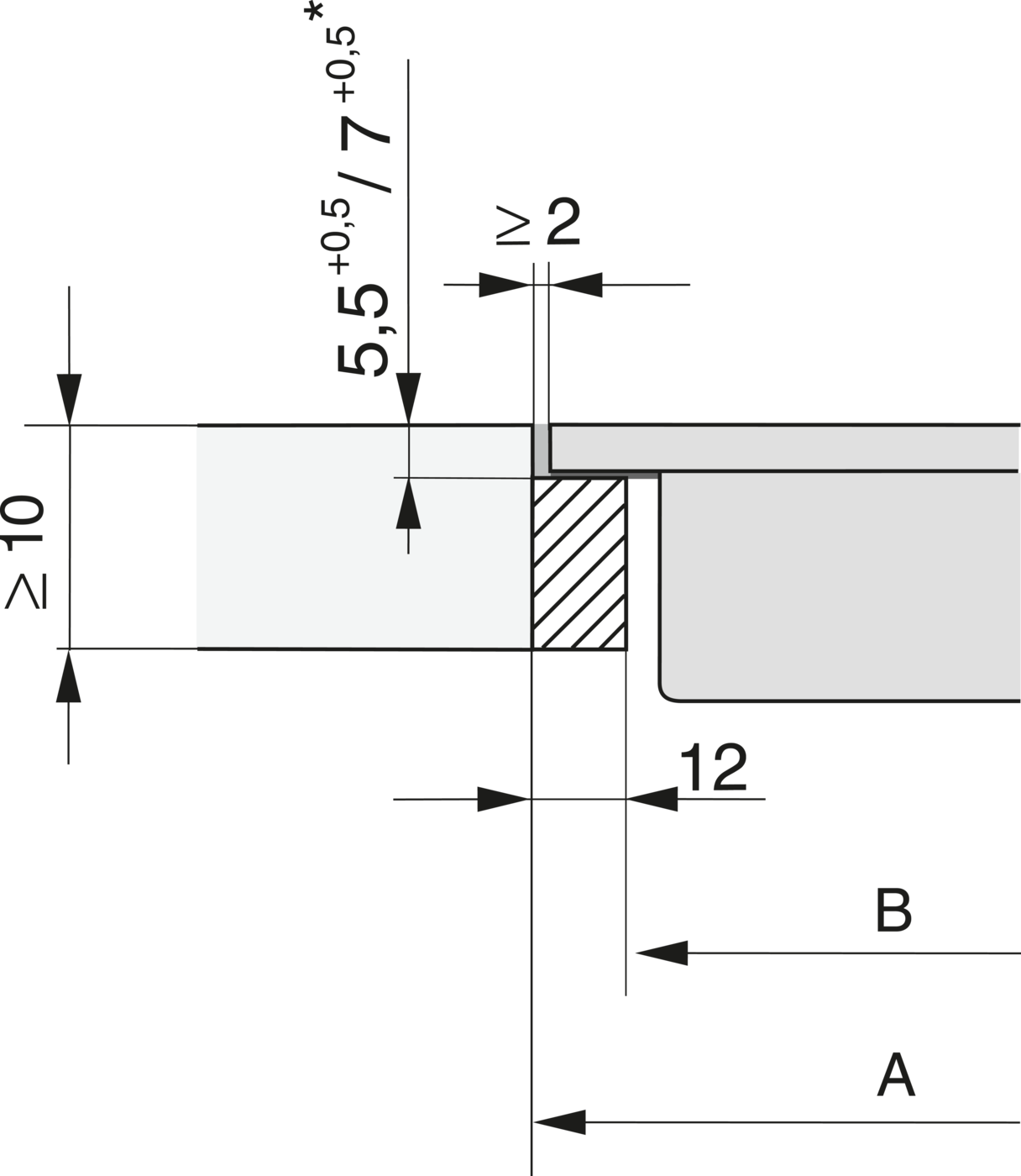

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
