KM 2354 - Gas cooktop


KM 2354
Gas cooktop in maximum width for the ultimate in cooking and user convenience.

Price: $ 3,999.00
KM2354

More product information

Gas cooktop in maximum width for the ultimate in cooking and user convenience.


  • Simple controls – single-handed operation via rotary dial control
  • Modern design – 888 mm wide, flat-fit stainless-steel trough
  • Particularly versatile - 5 burners incl. 1 dual wok
  • Extremely safe – GasStop function

    GasStop

    Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
  • Easy cleaning – dishwasher-safe ComfortClean pot rests

Downloads - KM 2354

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data FBXzip Download
3D data IFCzip Download
3D data RFAzip Download
3D data DWGzip Download
3D data RVTzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

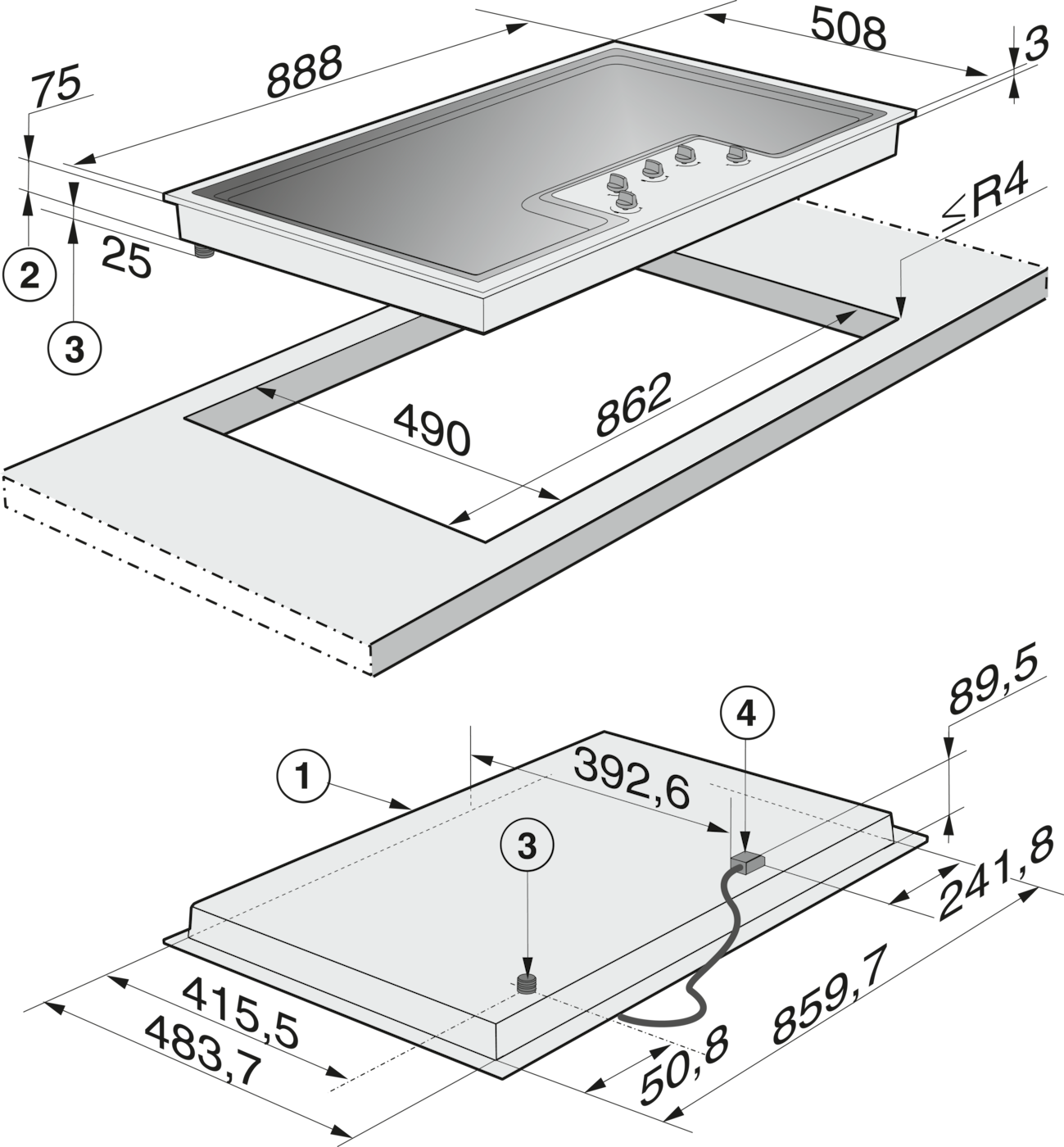

KM 2354 (Installation drawing) VG AUS

1. front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L = 2000 mm

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
